MAX4518CSD Precision, 4-Channel/Dual 2-Channel, Low-Voltage, CMOS Analog Multiplexers
General Description
The MAX4518/MAX4519 precision, monolithic, CMOS analog multiplexers (muxes) offer low on-resistance (less than 100Ω), which is matched to within 4Ω between channels and remains flat over the specified analog signal range (10Ω max). They also offer low leakage over temperature (NO-off leakage current less than 2nA at +85°C) and fast switching speeds (transition time less than 250ns). The MAX4518 is a 4-channel device, and the MAX4519 is a dual 2-channel device. The MAX4518/MAX4519 are fabricated with Maxim’s low-voltage silicon-gate process. Design improvements yield extremely low charge injection (less than 5pC) and guarantee electrostatic discharge protection greater than 2000V. These muxes operate with a single +2.7V to +15V supply or with bipolar ±2.7V to ±8V supplies, while retaining CMOS-logic input compatibility and fast switching. CMOS inputs provide reduced input loading.
Features
Guaranteed On-Resistance Match Between Channels (<4Ω )
Low On-Resistance (<100Ω )
Guaranteed Flat On-Resistance over Signal Range (<10Ω)
Guaranteed Low Charge Injection (<5pC)
NO-Off Leakage Current <2nA at +85°C
COM-Off Leakage Current <5nA at +85°C
Electrostatic Discharge Protection >2000V
Single-Supply Operation (+2.7V to +15V) Bipolar-Supply Operation (±2.7V to ±8V)
Low Power Consumption (<300µW)
Rail-to-Rail Signal Handling
TTL/CMOS-Logic Compatible
Applications
Sample-and-Hold Circuits
Automatic Test Equipment
Heads-Up Displays
Guidance and Control Systems
Military Radios
Communications Systems
Battery-Operated Systems
PBX, PABX
Audio Signal Routing
Low-Voltage Data-Acquisition Systems
Features
Guaranteed On-Resistance Match Between Channels (<4Ω )
Low On-Resistance (<100Ω )
Guaranteed Flat On-Resistance over Signal Range (<10Ω)
Guaranteed Low Charge Injection (<5pC)
NO-Off Leakage Current <2nA at +85°C
COM-Off Leakage Current <5nA at +85°C ♦ Electrostatic Discharge Protection >2000V ♦ Single-Supply Operation (+2.7V to +15V) Bipolar-Supply Operation (±2.7V to ±8V) ♦ Low Power Consumption (<300µW) ♦ Rail-to-Rail Signal Handling ♦ TTL/CMOS-Logic Compatible
Ordering Information
Pin Configurations
ABSOLUTE MAXIMUM RATINGS
Continuous Power Dissipation (TA = +70°C)
Plastic DIP (derate 10.0mW/°C above +70°C) ............800mW
Narrow SO (derate 8.0mW/°C above +70°C) ..............640mW
QSOP (derate 9.52mW/°C above +70°C)....................762mW
CERDIP (derate 9.09mW/°C above +70°C).................727mW
Operating Temperature
Ranges MAX4518C_ _ /MAX4519C_ _ ............................0°C to +70°C
MAX4518E_ _ /MAX4519E_ _ ..........................-40°C to +85°C MAX4518MJD/MAX4519MJD........................-55°C to +125°C
Storage Temperature Range .............................-65°C to +150°C
Lead Temperature (soldering, 10sec) .............................+300°C
ELECTRICAL CHARACTERISTICS—Dual Supplies (V+ = +4.5V to +5.5V, V- = -4.5V to -5.5V, GND = 0V, VAH = VENH = 2.4V, VAL = VENL = 0.8V, TA = TMIN to TMAX, unless otherwise noted.)
Hot selling offer!!!
| P/N | QTY | PACKAGE | D/C |
| LNK626PG | 15000 | DIP8 | NEW |
| LNK306PN | 8000 | DIP-7 | NEW |
| LNK616DG-TL | 4323 | sop7 | NEW |
| TNY180PN | 7262 | DIP7 | NEW |
| TNY266GN | 5243 | SOP7 | NEW |
| TNY253GN | 3763 | SOP8 | NEW |
| TOP252PN | 5000 | DIP7 | NEW |
| TNY280PN | 11126 | DIP7 | NEW |
| PT2248 | 6725 | DIP16 | NEW |
| PT2311 | 2725 | SOP28 | NEW |
| MOC3010SD | 3000 | SMD6 | NEW |
| MOCD211M | 3220 | SOP8 | NEW |
| MCT6 | 8236 | DIP8 | NEW |
| MOC3023 | 60000 | DIP6 | NEW |
| 4N35 | 90000 | DIP | NEW |
| MOC217R2 | 1218 | SOP8 | NEW |
| H11AG2 | 4850 | DIP6 | NEW |
| MOCD211M | 20000 | SOP8 | NEW |
| RDA5851SX | 5076 | BGA | NEW |
| RDA5875Y | 500 | QFN | NEW |
| ALC3227-CGT | 11915 | QFN | NEW |
| RTL8166EH-CGT | 7930 | QFN32 | NEW |
| PS7141L-2A-E3-A | 2750 | SOP8 | NEW |
| PS9513L3-E3 | 5800 | SOP8 | NEW |
| PS9117A-F3-A | 3200 | SOP5 | NEW |
| PS9505L1-AX | 13010 | DIP8 | NEW |
| PS7241-2A-F3-A | 3000 | SOP-8 | NEW |
| PS2911-1-F3-A | 1500 | SSOP4 | NEW |
| PS9505L3-AX | 1569 | SOP8 | NEW |
| PS9513L3-E3 | 4000 | SOP8 | NEW |
| PS9505L1-AX | 2324 | DIP8 | NEW |
| PS9701-E4 | 15891 | SOP5 | NEW |
| PS2501L-1-F3 | 2933 | SOP4 | NEW |
| R2A20134SPW5AV | 2180 | SOP8 | NEW |
| HD64F38602RFT4V | 7500 | QFN32 | NEW |
| PS2581A-1 | 2215 | DIP4 | NEW |
| PS2561A | 2259 | DIP4 | NEW |
| PS2561L-1-V-F3-A | 1410 | SOP4 | NEW |
| M81706AFP DB1G | 12000 | SOP8 | NEW |
| HD64F2212UFP24V | 1319 | QFP | NEW |
| UPD72042BGT-E1-A | 3000 | SOP16 | NEW |
| RF2422TR7L | 750 | SOP16 | NEW |
| RF2638TR13 | 2141 | MSOP8 | NEW |
| RT5043AGQV | 1500 | QFN | NEW |
| R3111H421A-T1-FE | 4000 | SOP89 | NEW |
| R3111H221C-T1-FE | 4000 | SOP89 | NEW |
| BA12003BF-E2 | 2500 | SOP16 | NEW |
| K6X1008C2D-PF70 | 1613 | TSSOP | NEW |
| S3F84I9XZZ-QZ89 | 1060 | QFP44 | NEW |
| S-8232NJFT-T2 | 17934 | MSSOP8 | NEW |
| S-8261AAOMD-G2OT2S | 5625 | SOT23 | NEW |
| LC03-3.3.TB | 4417 | sop8 | NEW |
| SMDA05.TB | 6500 | SOP8 | NEW |
| SC2595STRT | 2073 | SOP8 | NEW |
| GBU608 | 1490 | DIP4 | NEW |
| KBP310 | 1000 | DIP4 | NEW |
| GBU606 | 1300 | DIP4 | NEW |
| KBC410 | 500 | DIP4 | NEW |
| KBU610 | 3600 | DIP4 | NEW |
| KBP210 | 2995 | DIP4 | NEW |
| GBU808 | 1250 | DIP4 | NEW |
| PC3SH11YFZAF | 1400 | DIP4 | NEW |
| PC355NTJ000F | 1129 | SOP4 | NEW |
| PC716V | 9351 | DIP6 | NEW |
| PC723V | 1880 | DIP6 | NEW |
| PR3BMF51NSKF | 14250 | DIP7 | NEW |
| PR3BMF51NSKF | 8700 | DIP7 | NEW |
| PC4SD11NTZCF | 2085 | DIP5 | NEW |
| PC716V | 7000 | DIP6 | NEW |
| PC3H4J00000F | 2600 | SOP4 | NEW |
| PR33MF51YPLF | 13866 | SOP7 | NEW |
| PC3SH21YFZAF | 8175 | DIP-4 | NEW |
| PC3H7CJ0000F | 1844 | SOP4 | NEW |
| PC357N2TJ00F | 21000 | SOP4 | NEW |
| PC3SH13YFZAF | 980 | DIP4 | NEW |
| PC817C | 7500 | DIP4 | NEW |
| PR32MA11NTZ | 1500 | DIP5 | NEW |
| S11MD4T | 2120 | DIP5 | NEW |
| PC716V | 9855 | DIP6 | NEW |
| PC354N1T | 1355 | SOP4 | NEW |
|
|

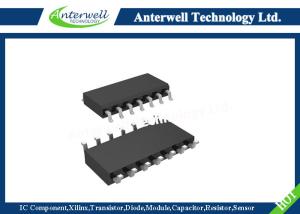

MAX4518CSD Precision, 4-Channel/Dual 2-Channel, Low-Voltage, CMOS Analog Multiplexers Images
|
